Are you fighting Iron Stains & Rotten Egg/Sulfur Odor?

Iron staining is a common problem in homes today. Iron staining on fixtures, as well as dingy clothes and sometimes even hair will turn a reddish orange color. Iron bacteria may be present in water with iron, creating a slimy build up in standing water (such as your toilet tank) and can smell like rotting vegetation. Sulfur is easily detected by the presence of a “rotten egg” odor, and is sometimes associated with yellow staining.

All of these problems can be eliminated with

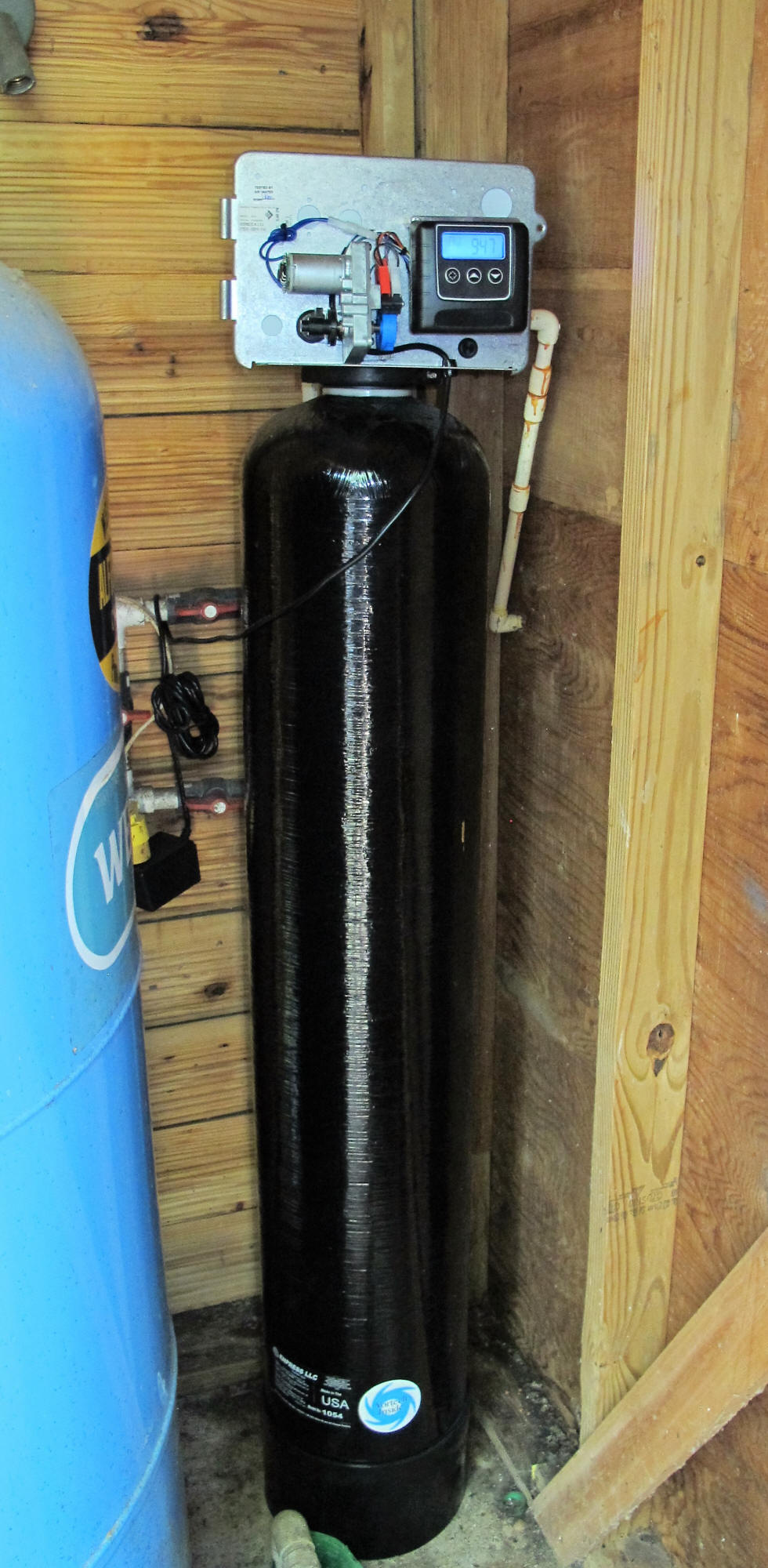

the AIO Air Injection Oxidation Filtration System.



The AIO maintains an 'air pocket' in the top of the tank while the system is in service. As the water passes thru the air pocket, iron and sulfur are oxidized. Additionally, dissolved oxygen is added to the water. The AIO filter media bed then removes the iron and sulfur from the water.



The AIO can remove up to 8 ppm Hydrogen Sulfide (H2S) and more than 7 ppm of clear Iron. A softener is recommended after the AIO to remove additional minerals from the water. Backwashing every 3 days will remove accumulated iron and replenish the filter media bed, this backwash process is made more efficient when a Vortech tank is used. The regeneration / backwash process also adds a fresh air pocket to the system. The AIO system comes equipped with a Fleck 2510 SXT air injection control head that automatically backwashes the system to clean the media and flush everything down the drain. By utilizing a patented piston in the control valve, the AIO is able to put the whole oxidation process inside one tank, keeping maintenance costs and down time to a minimum.

 These systems also help reduce Iron stains caused by lawn irrigation systems.

(706) 769-4323
Serving North East Georgia since 1993
